Structure / Lateral bracing system
X-bracing
/ˈɛks ˌbreɪs.ɪŋ/noun
Named for the X shape formed by two crossing diagonals.
Definition
A pair of diagonal members crossing within a frame bay to resist sideways forces from wind or earthquakes by turning them into tension and compression.
Fig. 65 — X-bracing: schematic studyNOT TO SCALE

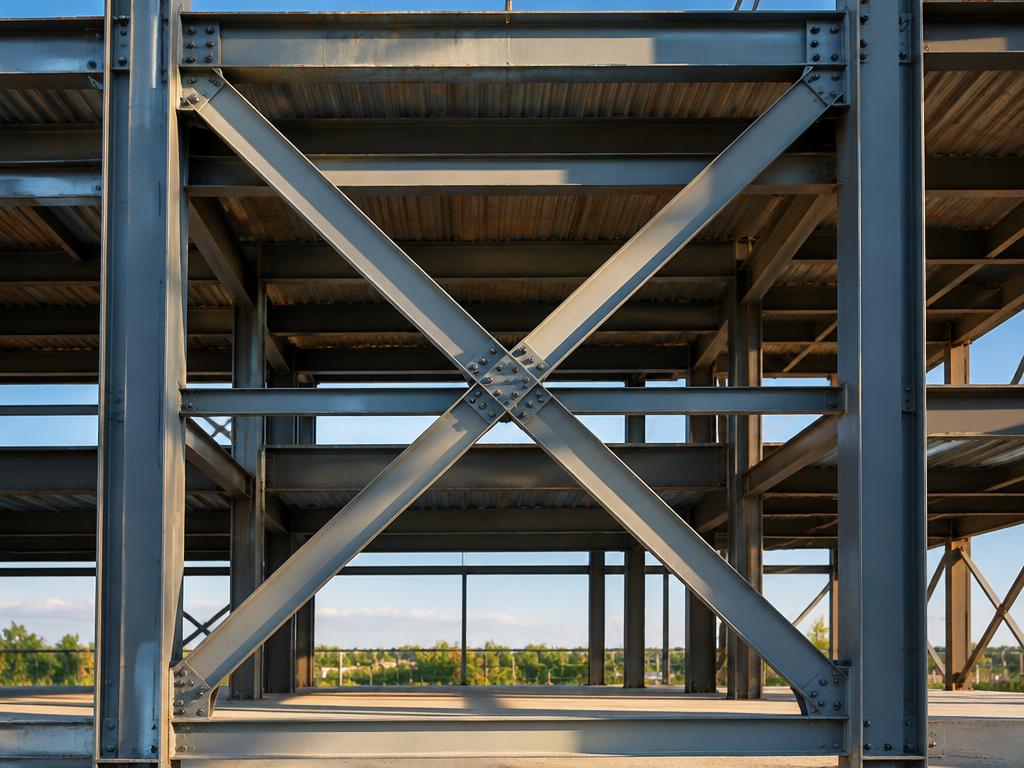

Illustrative study — X-bracing · AI-generatedSAMPLE IMAGE
Photo study — X-bracing · AI-generated00:06
Structural & construction notes
Slender rods or cables work in tension only, so one diagonal acts in each direction of sway. Connections at the corners must carry the full brace force, and the bays chosen for bracing affect openings and layout.
An educational reference. Project-specific design requires professional guidance.
