Rainscreen
/ˈreɪn.skriːn/noun
From rain and screen, Middle English screne, “a protective shield.”
Definition
A wall assembly in which an outer cladding sheds most rain, backed by a ventilated air gap and a weather barrier that drains away any water that gets past.
Fig. 91 — Rainscreen: schematic studyNOT TO SCALE
Illustrative study — Rainscreen · AI-generatedSAMPLE IMAGE

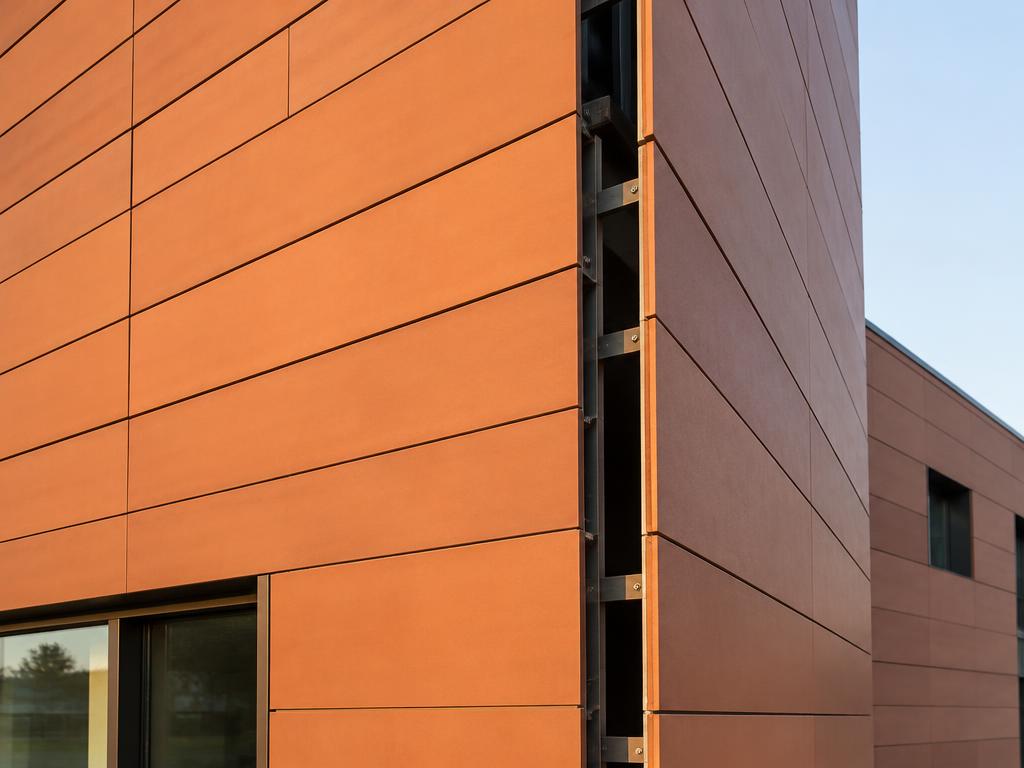

Photo study — Rainscreen · AI-generated00:06
Structural & construction notes
The cavity acts as a capillary break and lets air move behind the cladding so both layers can dry. Openings at the base and top, insect screens, and flashing at windows complete the system.
