Reveal joint
Definition

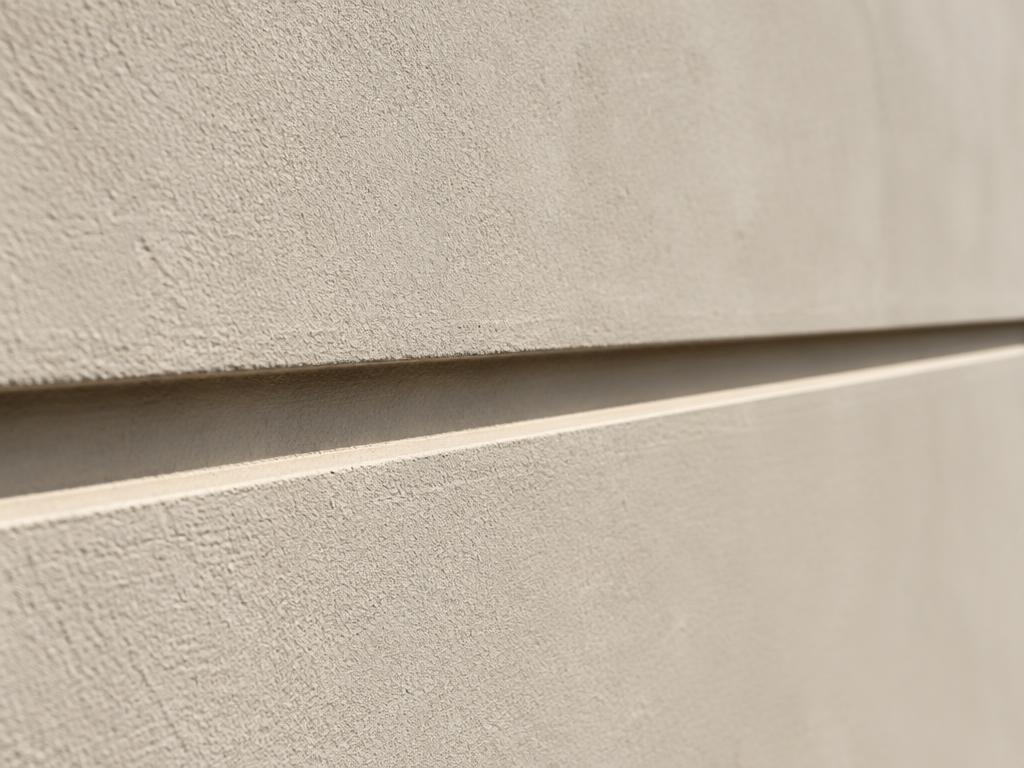

A reveal joint is a specialized architectural detail consisting of a recessed groove or controlled setback created at the intersection of two surfaces or materials. Unlike traditional architecture that uses decorative moldings to cover joints, a reveal joint utilizes negative space to create a crisp shadow line, emphasizing clean geometry and modern aesthetic transitions. It serves both functional and decorative purposes, acting as an aesthetic joint to provide visual resolution without necessarily accommodating structural movement, and is commonly used in gypsum board walls, precast panels, and around window or door openings to create a sense of depth and architectural sophistication.
Structural & construction notes
Common types of reveal joints include F reveals, Z reveals, V reveals, W reveals, "snap-in" reveals, reveal channel screeds, and integrated functional reveals. In broader construction contexts, they are also categorized by their application, such as drywall reveal moldings, wood panel reveals with metal inserts, and joints used in exterior rainscreen or precast concrete systems. Common materials for reveal joints include extruded aluminum, galvanized steel, and stainless steel. Aluminum is lightweight and corrosion-resistant with high aesthetic versatility, while galvanized steel is a cost-effective, strong option for conventional systems. Stainless steel offers superior durability and strength for corrosive environments but comes at a higher cost. Investing in high-quality materials like stainless steel or anodized aluminum increases initial investment but reduces long-term maintenance costs by preventing structural deterioration and cracking.
