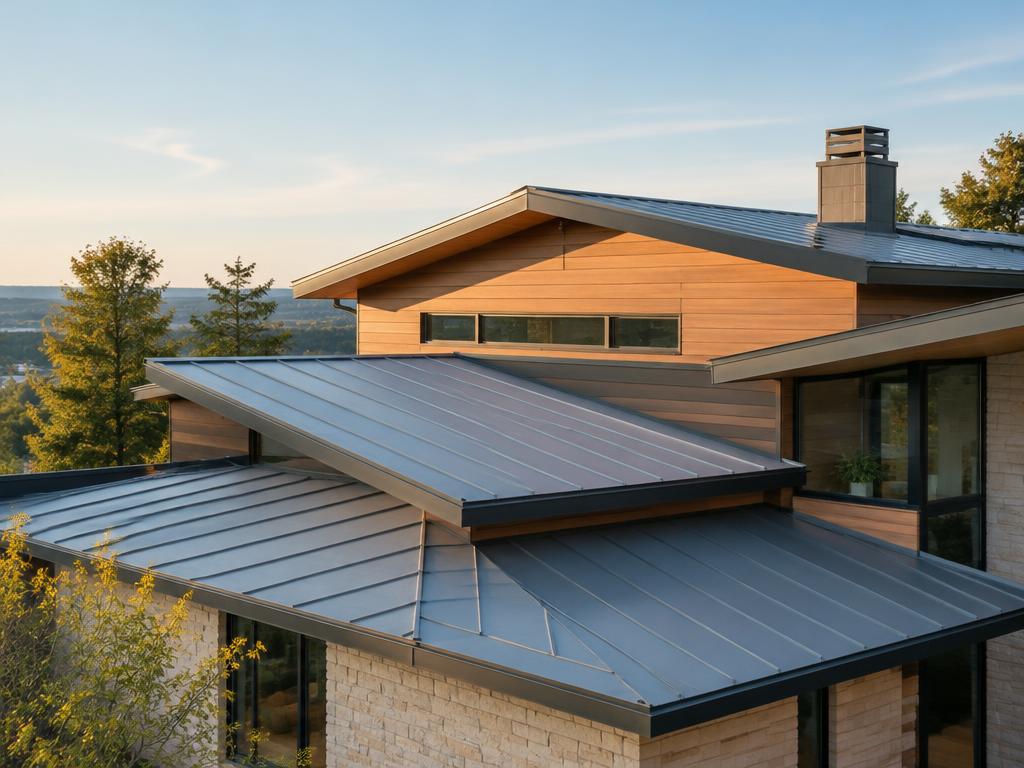

Roof plane
Definition
A roof plane is a flat, two-dimensional surface that forms one side of a roof system, acting as a primary overhead plane that shelters a building's interior from environmental elements. In architectural design, multiple roof planes intersect at ridges, hips, and valleys to create complex roof geometries, or a single plane can be used for simpler structures like shed roofs. These planes define the building's massing and spatial volume, often extending beyond the exterior walls as overhangs to provide additional protection and define the architectural character of the structure.
Structural & construction notes
Common types of roof planes include gable, hip, flat, mansard, gambrel, and shed roofs. Other variations include butterfly, saltbox, dome, arched, and combination roofs, as well as specialized designs like jerkinhead, monitor, and sawtooth configurations. These forms are often categorized by their geometric shape, number of slopes, and functional characteristics such as drainage efficiency or wind resistance. Common materials for roof planes include asphalt shingles, metal (steel, aluminum, copper), clay or concrete tiles, slate, wood (shingles or shakes), and synthetic composites. Asphalt shingles are the most affordable and common but have the shortest lifespan (15–30 years), while premium materials like slate and tile offer the highest durability (50–100+ years) and minimal maintenance at a significantly higher initial cost. Metal roofing provides a mid-to-high cost balance with excellent longevity (40–70 years) and energy efficiency, whereas wood and composites offer specialized aesthetics with moderate to high durability and cost.
